ULD Specification

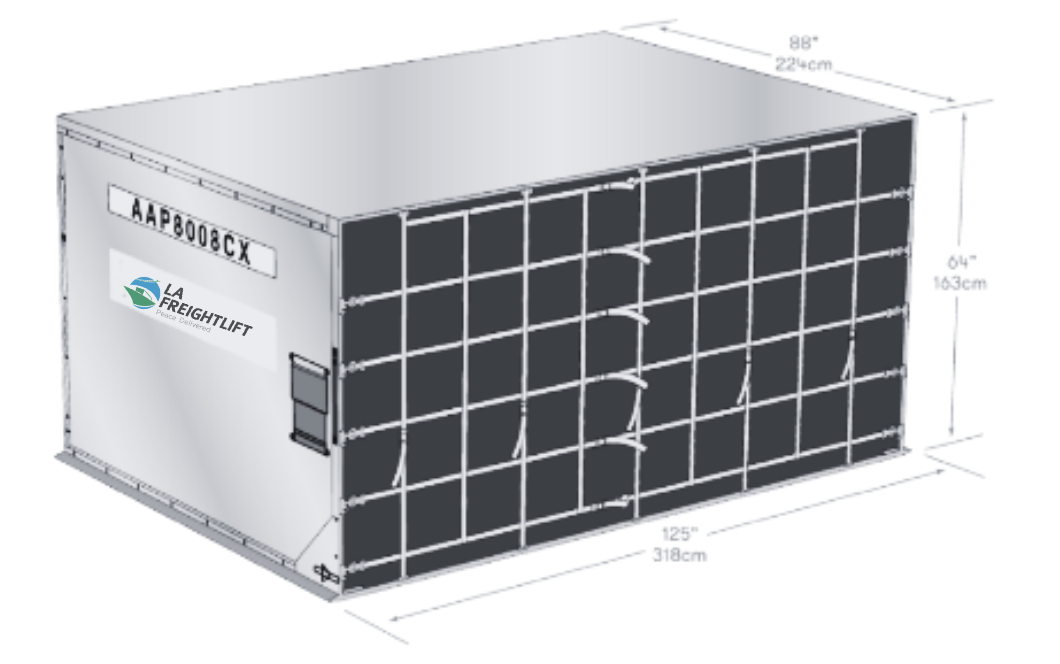

AAP
Internal Volume
371 cu. ft., 10.51 mc
Tare Weight
220 kg
Maximum Gross Weight
4,626 kg
Loadable Aircraft Type
747, 747F, 777, Airbus

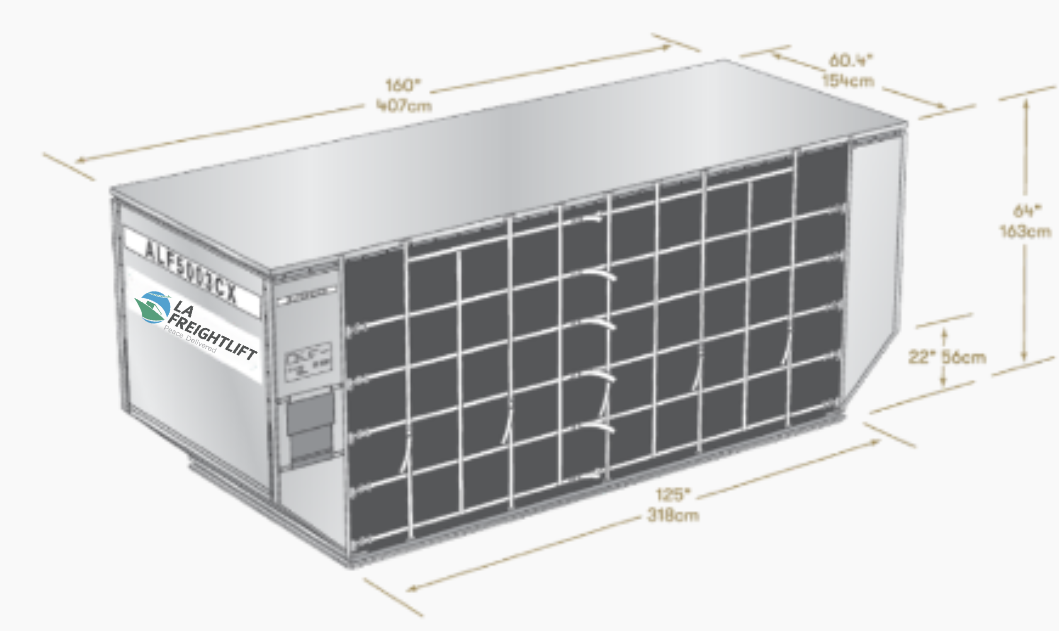

ALF
Internal Volume
310 cu.ft, 8.78 mc
Tare Weight
157 kg
Max Gross Weight
3,175 kg
Loadable Aircraft Type
747, 747F, 777, Airbus

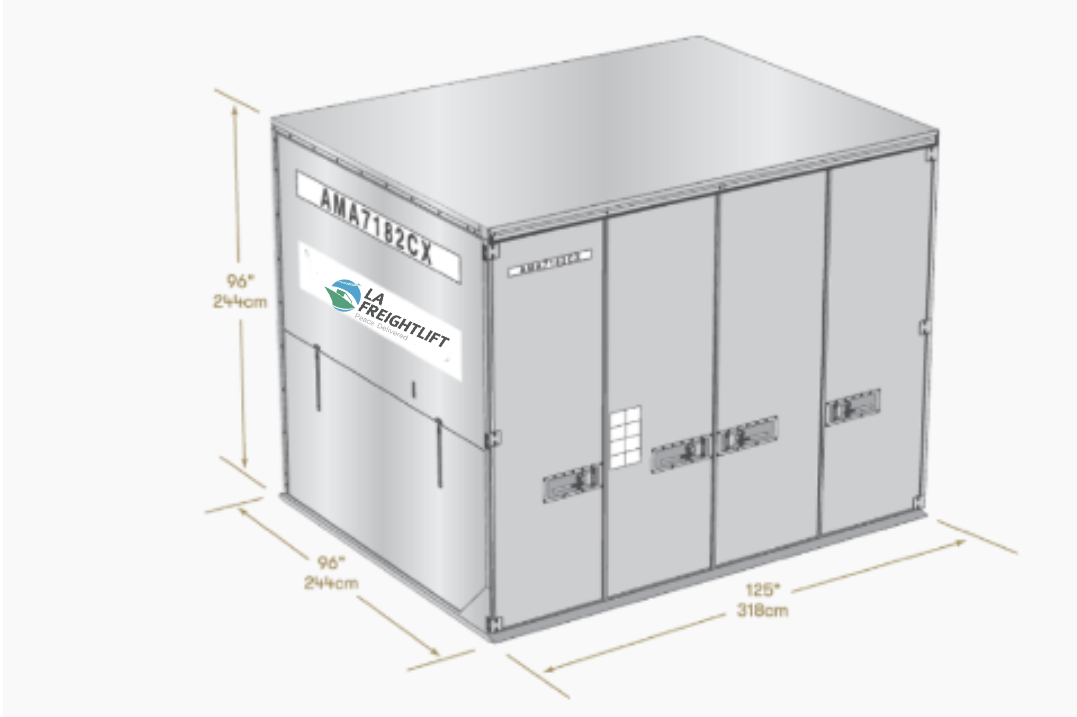

AMA
Internal Volume
621 cu.ft. 17.58 mc
Tare Weight
477 kg
Max Gross Weight
6,804 kg
Loadable Aircraft Type
747F

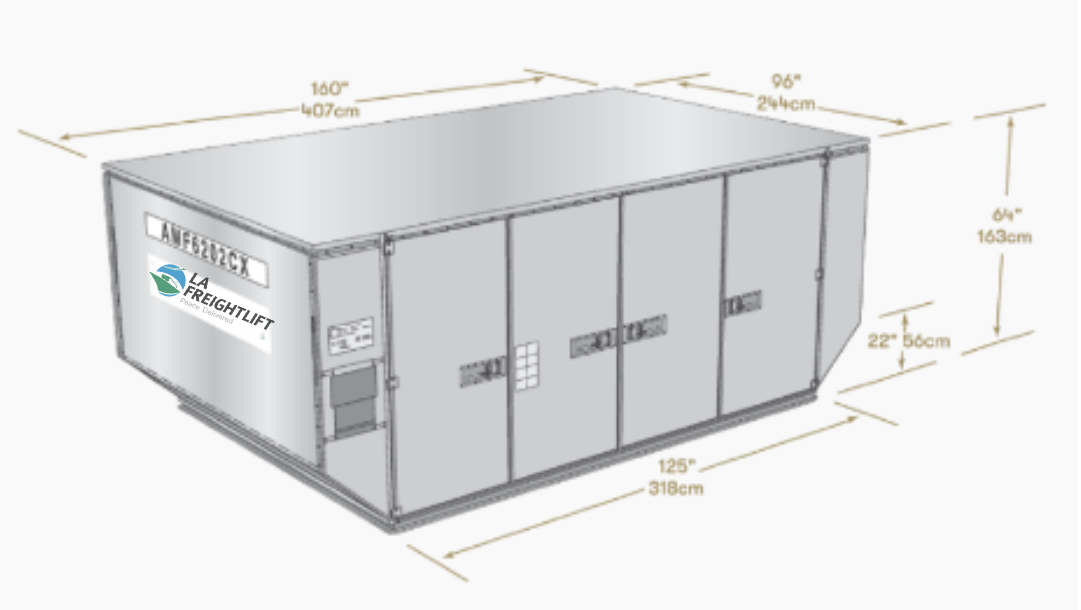

AMF
Internal Volume
6516 cu.ft. 14.6 mc
Tare Weight
315 kg
Max Gross Weight
6,825 kg
Loadable Aircraft Type
747, 747F, 777, Airbus

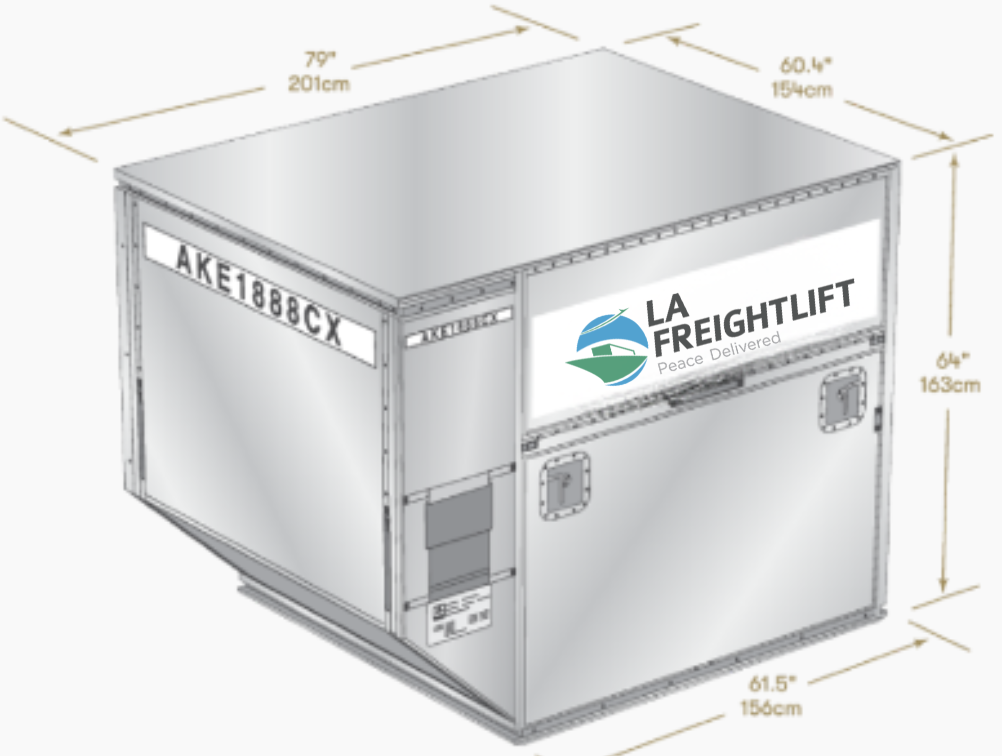

AKE
Internal Volume
152 cu.ft. 4.3 mc
Tare Weight
73kg/100 kg
Max Gross Weight
1,588 kg
Loadable Aircraft Type
747, 747F, 777, Airbus
RKN
Internal Volume
125.41 cu. ft., 3.55 mc
Tare Weight
190 kg
Maximum Gross Weight
1,588 kg
Aircraft Type
747, 747F, 777, Airbus

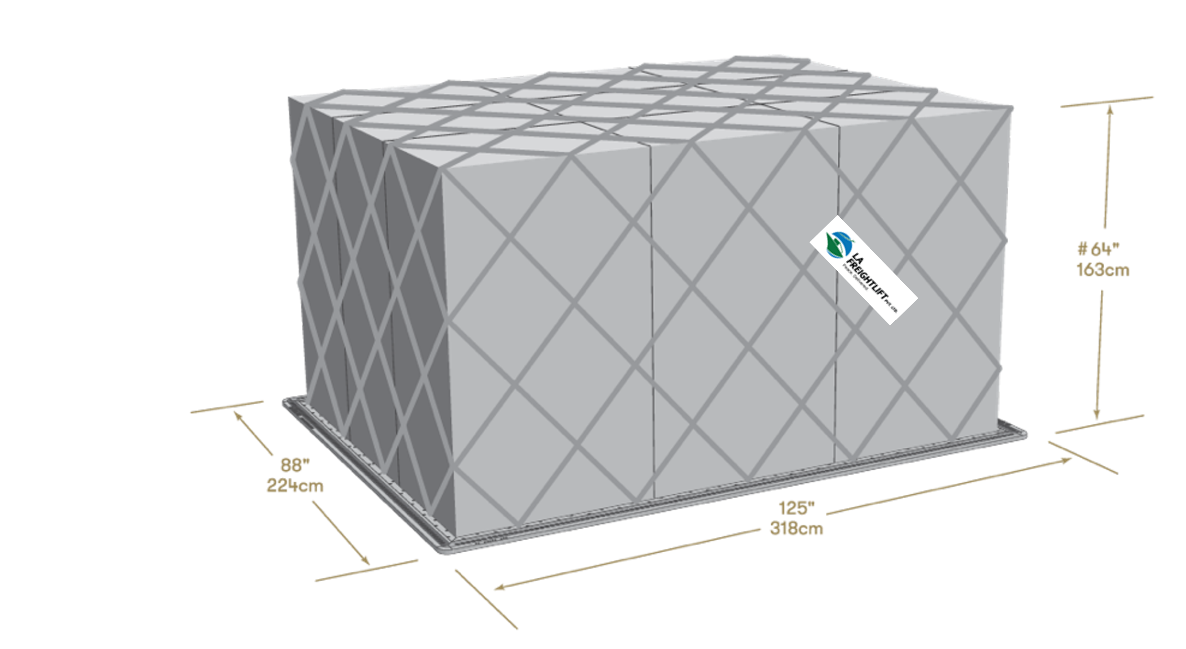

P1P. PAG
Internal Volume
Base: 88" x 125" Height: 64" (Passenger flight), 96" (Q6 Contour), 118" (Q7 Contour)
Tare Weight
114 kg
Maximum Gross Weight
4,626 kg (LD)
6,033 kg (MD)
Loadable Aircraft Type
747, 747F, 777, Airbus

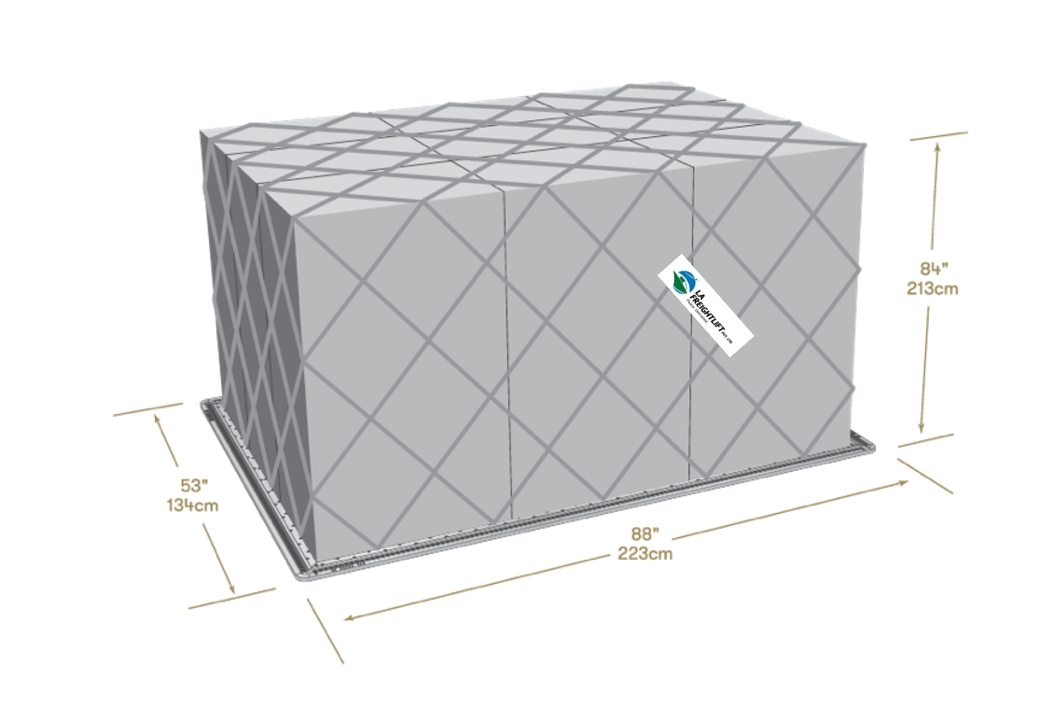

PEB
Internal Volume
Base: 53" x 88" Height: 84"
Tare Weight
55 kg
Maximum Gross Weight
1,800 kg (B-HIH - 1,300 kg)
Loadable Aircraft Type
747F

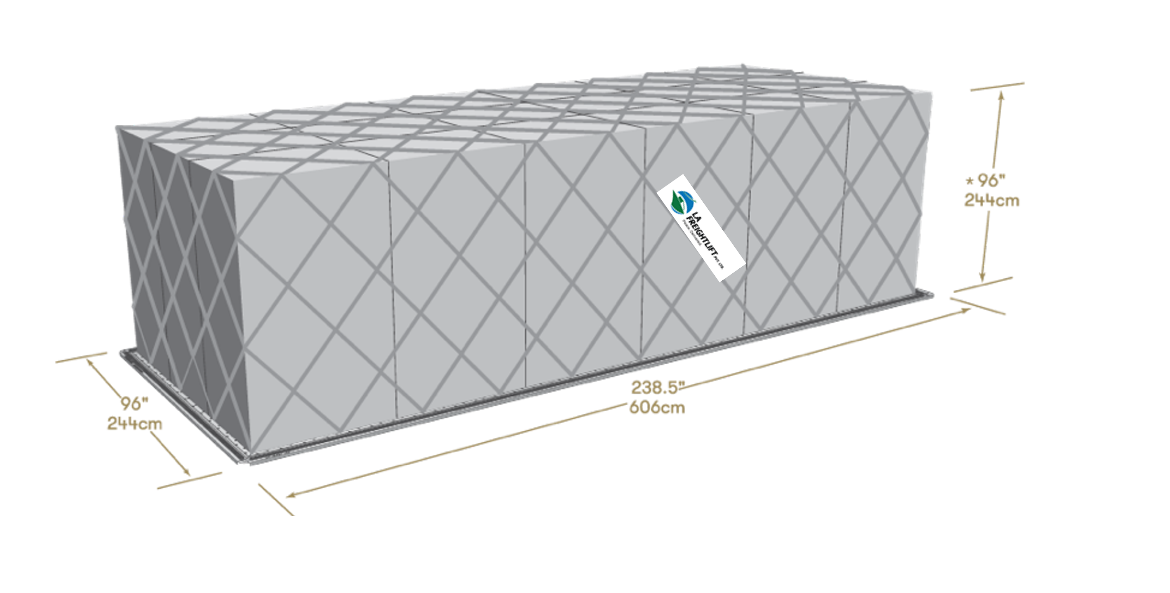

PGA
Internal Volume
Base: 96" x 238.5" Height: 96" (Q6 Contour), 118" (Q7 Contour)
Tare Weight
565 kg
Maximum Gross Weight
13,608 kg
Loadable Aircraft Type
747F

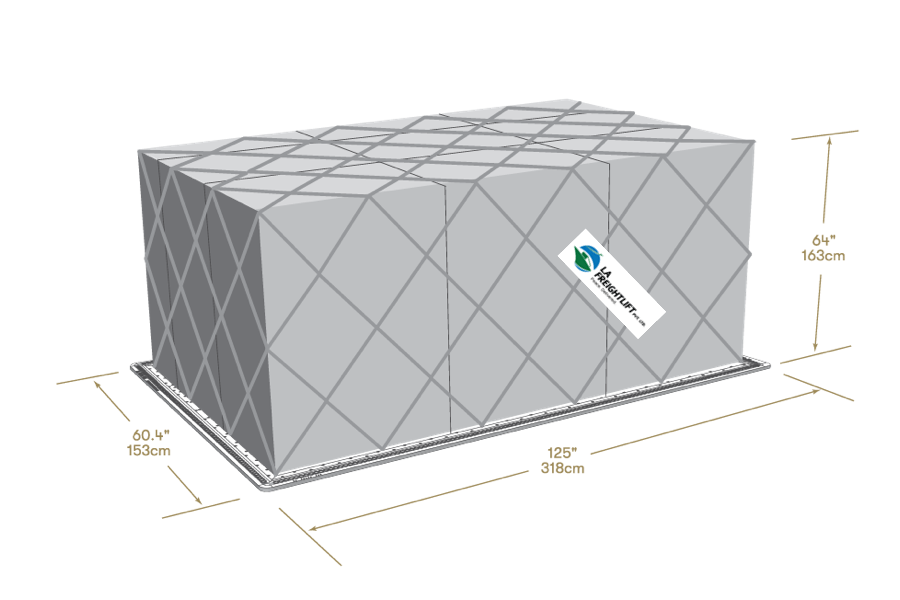

PLA
Internal Volume
Base: 60.4" x 125" Height: 64"
Tare Weight
103 kg
Maximum Gross Weight
3,175 kg
Loadable Aircraft Type
747, 747F, 777, Airbus
PMC. PQP. P6P
Internal Volume
Base: 96" x 125" Height: 64" (passenger flight), 96" (Q6 Contour), 118" (Q7 Contour)
Tare Weight
120 kg
Maximum Gross Weight
5,035 kg (LD)
6,804 kg (MD)
Loadable Aircraft Type
747, 747F, 777, Airbus

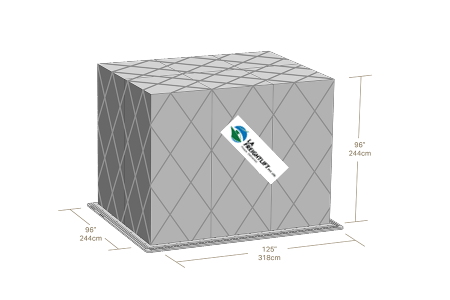

Q6

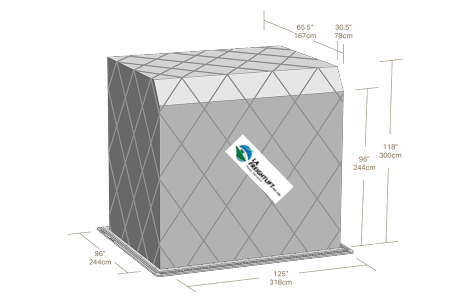

Q7

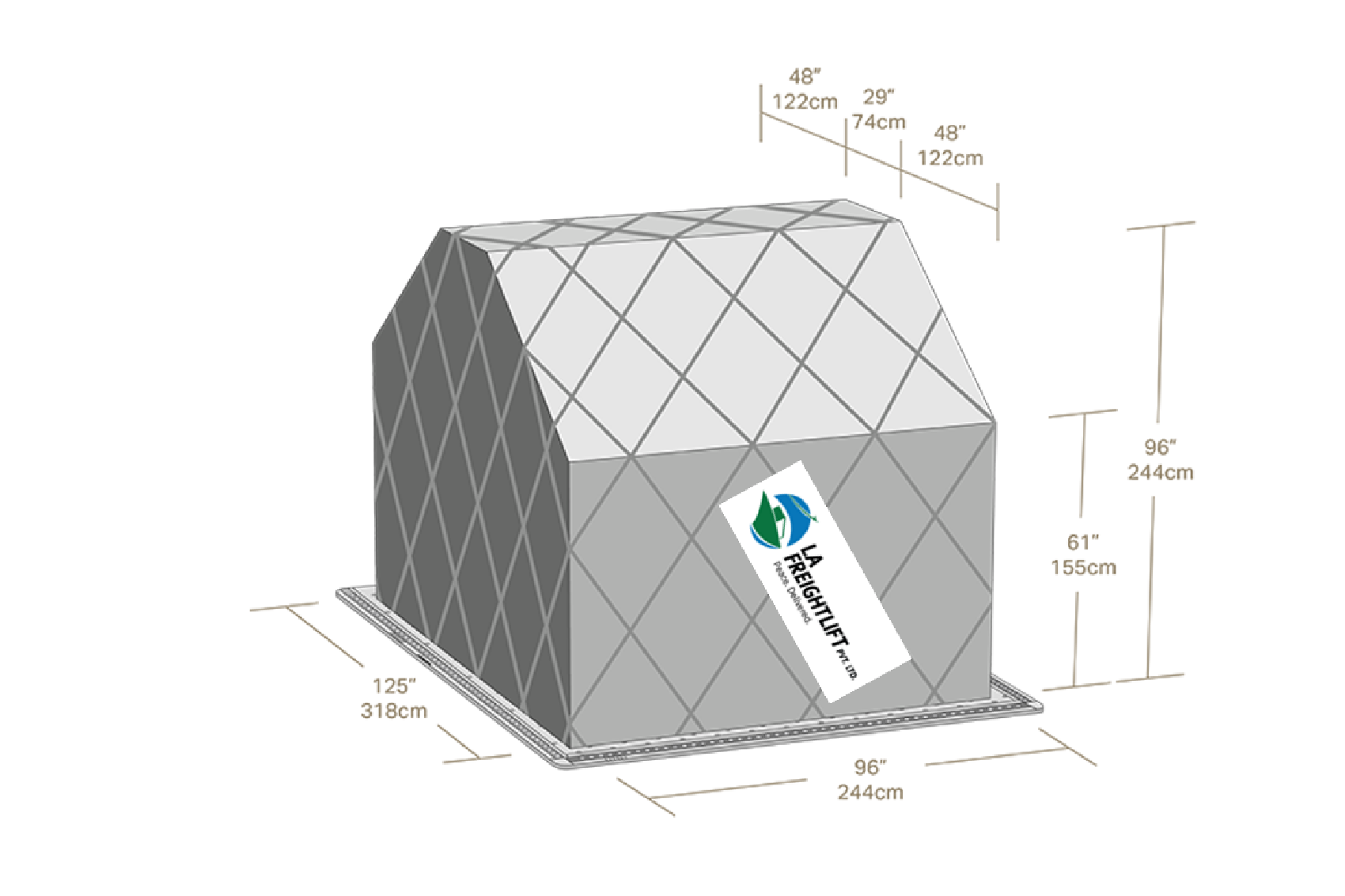

ZA

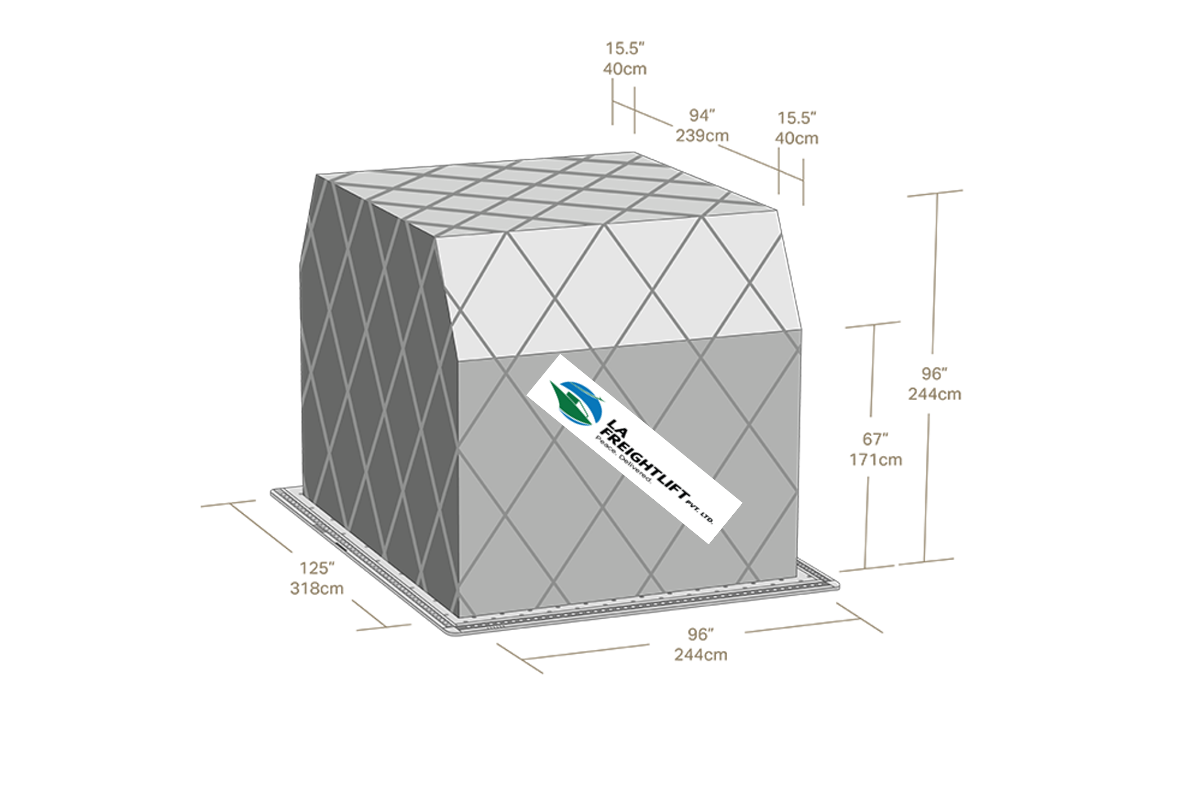

ZB

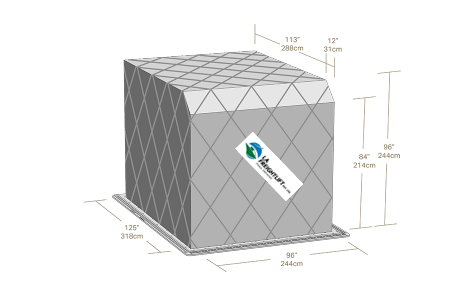

ZC

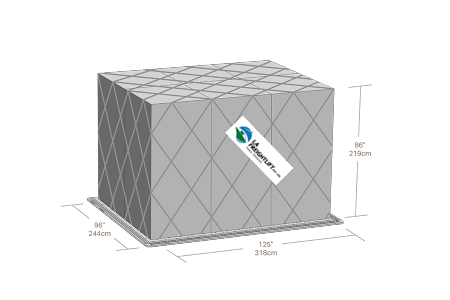

X8

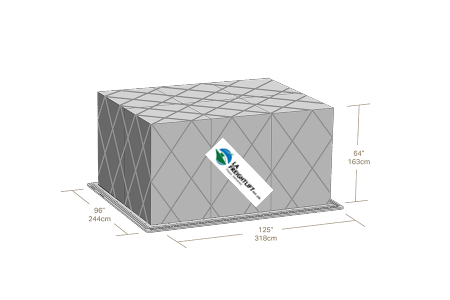

A2

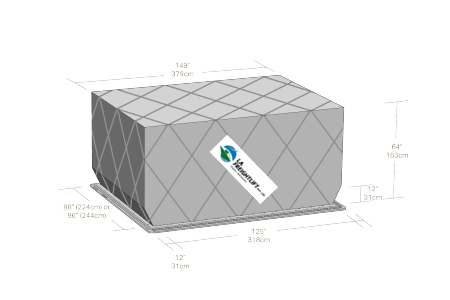

H2

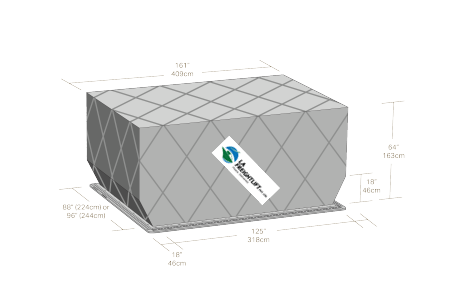

H3

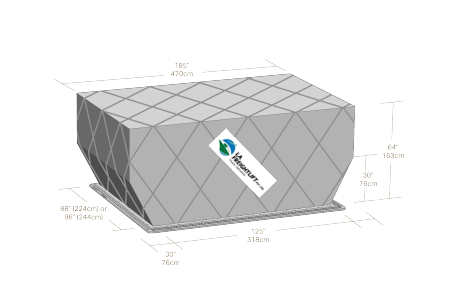

W2
L3

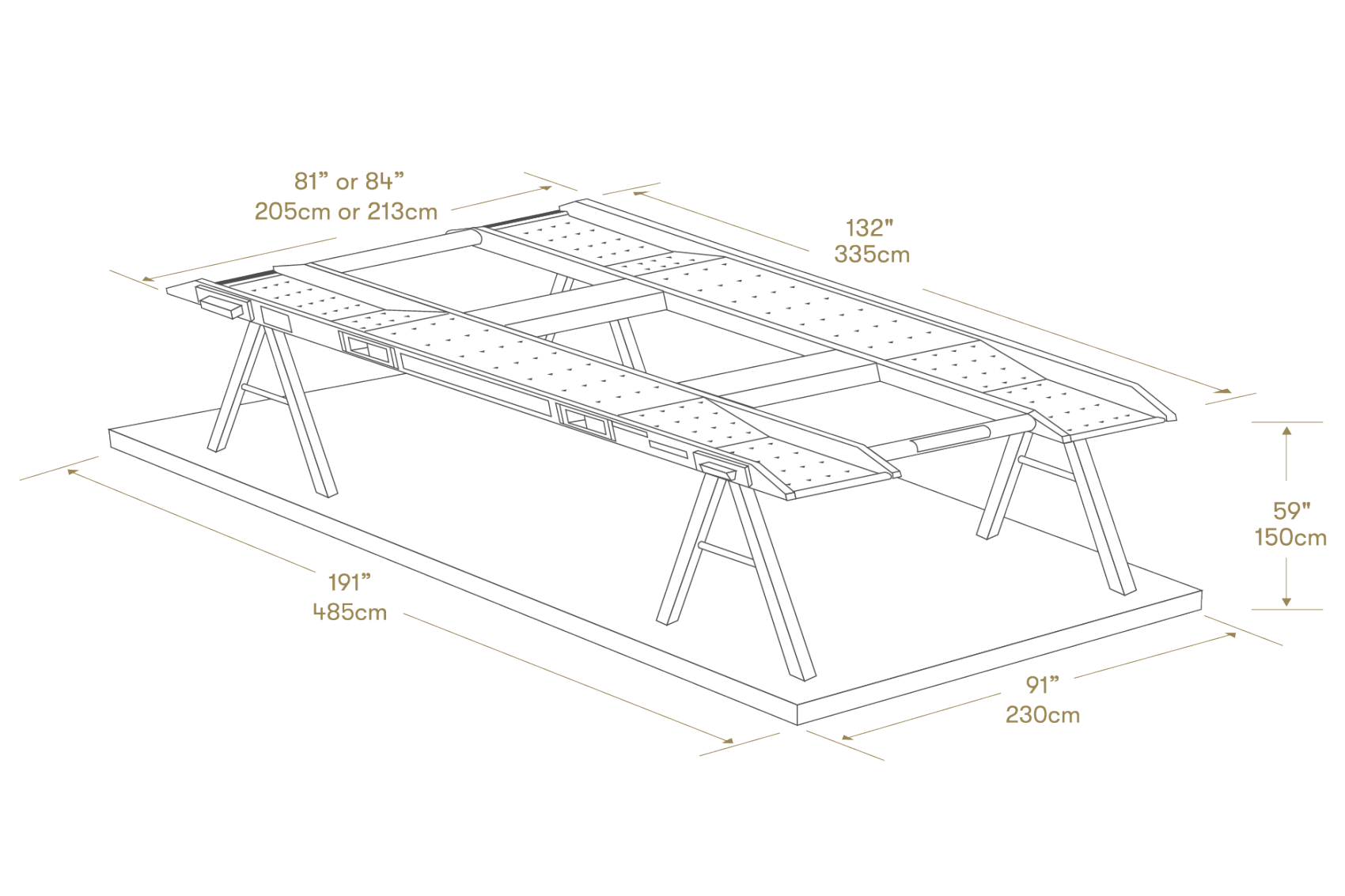

VZA. VRA
Internal Volume
Fitted on PGA 16 ft. or 20 ft. Pallet
Tare Weight
319 kg (2 trestles: 139 kg, Platform: 180 kg)
Maximum Gross Weight
2,500 kg (Upper Car) 9,300 kg (Max Gross Weight of Pallet)
Aircraft Type
747F Upper Deck
